Structural magnetic resonance imaging in Parkinson disease with freezing of gait: A systematic review of literature

INTRODUCTION

Parkinson’s disease (PD) is a well-known syndrome of muscle rigidity, resting tremor, bradykinesia, and postural balance problem.^[1] Freezing of gait (FoG) is a condition that affects patients with PD. It is characterized by an episodic inability to produce effective stepping, which is brought on by an absence or noticeably reduced forward movement of the feet despite the patient’s intention to walk.^[2-4] FoG may develop during disease progression, which stage is called PD with FoG (PDFoG). The cases of PD with incomplete clinical findings may need to be critically distinguished with Parkinsonism due to secondary cause and other insults toward basal ganglia.^[3,5-7]

Diagnosis of PD-FoG still poses challenge when faced with anatomical, de facto criteria.^[1] This is mainly due to the fact classical pathognomonic PD finding of dopamine deprivation in the substantia nigra which is mainly supported by gross anatomy findings from autopsy.^[8] However, since not all PD developed into PD-FoG, it is predicted that there must be peculiarity of neuroimaging present only in PD-FoG compared to PD-non Freezing of Gait (PD-nFOG).^[5] Study on normal human gait reflects the complex collaboration between intracranial structures such as sensorimotor cortex, thalamus, basal ganglia, midbrain, pons, cerebellum, and respective white matter in each walking phase.^[4,9] Hence, the dogma where combination of damage between these organs during PD progressivity may reflect as PD-FoG.

Current neuroimaging approach of PD is using magnetic resonance imaging (MRI).^[5] MRI in PD has been a staple neuroimaging modality to assess basal ganglia and its correlating structures. Functional MRI (fMRI) has been developed to assess brain activities under resting condition or under specific load of task. The fMRI for PD is able to differentiate activities between subcomponent activation of basal ganglia, distinguishing activities between grey matter and white matter, and analyzing white matter activities between sensorimotor cortex, tracts, thalamus, and basal ganglia.^[4] However, fMRI is proven to be hard to do for PD-FoG diagnosis since ideal PD-FoG fMRI requires leg movement to activate the brain parts involved; hence, the resting and post-walking fMRI technique which did not fully reflect the PD-FoG under walking attempt.^[10] Moreover, in the case of health systems is limited to access fMRI, the cheaper structural MRI (sMRI) is often become the only option. The sMRI has been extensively used to evaluate abnormal brain structure related to PD;^[10-12] however, correlation of sMRI result with PD-FoG based on current research findings is still yet to be understood.

MATERIALS AND METHODS

A systematic evaluation based on sMRI clinical trials on PDFOG was carried out. This study adheres to the Preferred Reporting Items for Systematic Reviews and Meta-Analyses guideline. This study was registered with PROSPERO (CRD42023407920).

RESULTS

Study selection

We obtained 545 studies through the aforementioned search strategy, which comprised as 509 studies through ScienceDirect database and 36 studies through PubMed database. Among those, 16 were selected because it fulfills inclusion criteria. The excluded studies were two studies which are abstract-only, six studies which are literature review, and one study because it is a research protocol-only. There were five studies on PD which includes FoG as subject of research, but did not group it into exclusive group. The remaining studies were excluded because the partially recognized key phrase (e.g., Parkinson Disease study but without FoG topic, or PD study but no relation with MRI topics). From the 16 studies, four studies were excluded due to duplicates. Finally, 11 studies were selected to be included in this review [Figure 1].

Close

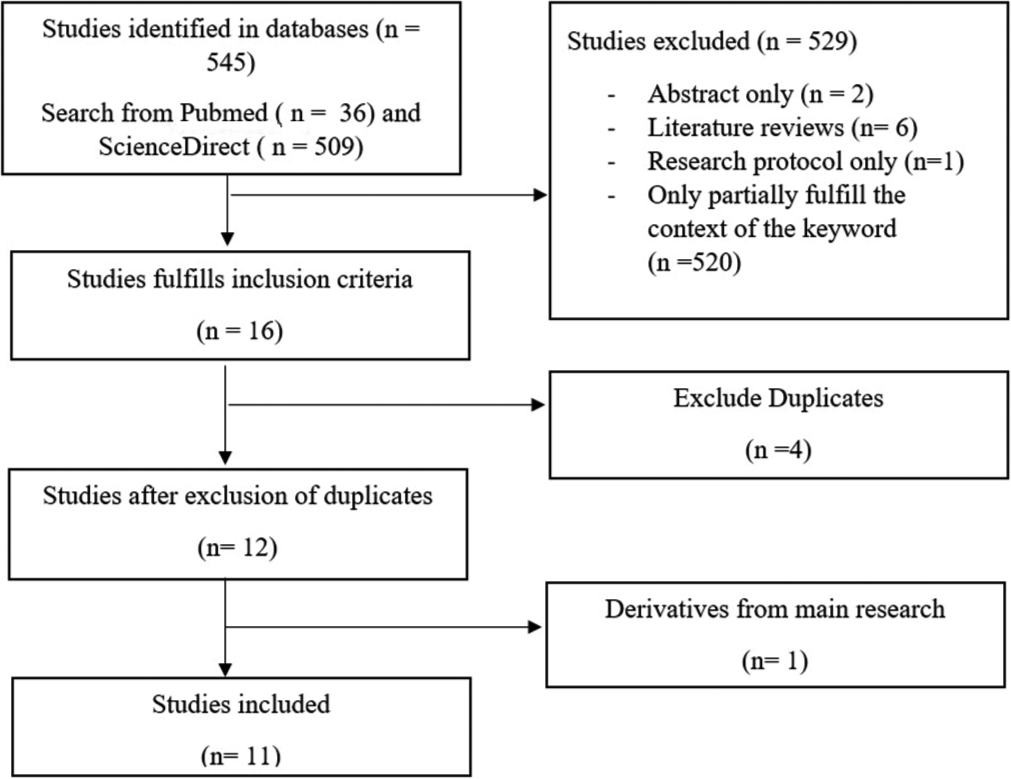

Figure 1:

Selection process preferred reporting items for systematic reviews and meta-analyses flow diagram.

Export to PPT

Included and discussed studies are Snijders et al., Kostic et al., Tessitore et al., Sunwoo et al., Canu et al., Jha et al., Myers et al., Vastik et al., Pietracup et al., and Bharti et al. which are case–control study and D’Cruz et al. which is prospective cohort study [Table 1].

Table 1: Summary of sMRI study’s findings on PD-FoG versus PD-nFoG.

S. No.	Authors	Year	Study design	Population	Methods	Important findings
1.	Snijders et al.[14]	2011	Case-control study	Thirteen PD-FOG patients and 12 PD-nFOG patients	• Volume-based morphometry using statistical inference at cluster and voxel level, with anatomical inference using Statistical Parametric Map Anatomy Toolbox and WFU PickAtlas Tool version 2.4	• Grey matter loss in the mesencephalic locomotor region in PD-FoG group • No differences in global grey matter, white matter or CSF volume between groups
2.	Kostic et al.[15]	2012	Case-control study	Seventeen PD-FoG patients, 20 patients with PD-nFoG patients	• WMHs identified on dualecho scans and measured using Jim 4.0 (http://www.xinapse.com/Manual/index.html) • Voxel-based morphometry performed using SPM8 and the DARTEL registration method	• More grey matter atrophy of bilateral dorsal frontal cortex, caudate nuclei, left midcingulate cortex, right hippocampus/amygdala, bilateral middle temporal gyrus, left inferior and right superior temporal gyri, bilateral inferior and superior parietal cortex, right precuneus, bilateral postcentral gyrus, left middle occipital cortex and cuneus, and right superior occipital gyrus in PD-FoG patient
3.	Tessitore et al.[16]	2012	Case-control study	Twelve PD-FoG patients, 12 patients with PD-nFog	• Voxel-based morphometry using SPM8 software (http://www.fil.ion.ucl.ac.uk/spm), and the VBM8 toolbox (http://dbm.neuro.uni-jena.de/vbm.html) with default parameters incorporating the DARTEL toolbox in SPM8	• PD-FoG showed a reduced grey matter volume in the left cuneus, precuneus, lingual gyrus, and posterior cingulate cortex compared with both patients with PD-nFoG • Correlation of PD-FoG clinical severity with GM loss in posterior cortical regions • No differences in global grey matter, white matter, or CSF volume between groups
4.	Sunwoo et al. [17]	2013	Case-control study	Forty-six non-demented patients with PD, categorized into PD-FoG (n=16) and PD-nFoG (n=30) groups	• Manual delineating the boundaries of substantia innominata with MRIcro software on the coronal T1-weighted MRI scans • Volumetric analysis for subcortical structures was performed with FSL eFMRIB’s Integrated Registration and Segmentation Tool, version 5.0	• Normalized substantia innominata volume did not differ significantly between the PD-FoG and PD-non-FoG group • Thalamic volumes were significantly reduced in PD-FoG compared with PD-non-FoG after adjusting for age, sex, disease duration, the Unified PD Rating Scale scores and total intracranial volume
5.	Canu et a.l[13]	2015	Case-control study	Twenty-three patients with PD-FoG compared with PD-nFoG	• Detection of grey matter volume alterations: VBM using SPM8 (www.fil.ion.ucl.ac.uk/spm/) and the DARTEL registration method • White matter damage analysis: DT MRI analysis: FSL tools (http://www.fmrib.ox.ac.uk/fsl/fdt/) and the JIM5 software (Version 6.0, Xinapse Systems, Northants, UK, http://www.xinapse.com). • Multisubject DT MRI analysis for tract-based analysis: TBSS version 1.2 (http://www.fmrib.ox.ac.uk/fsl/tbss/index.html)	• No grey matter atrophies • Bilateral white matter damage of the pedunculopontine tract, corpus callosum, corticospinal tract, cingulum, superior longitudinal fasciculus, and white matter underneath the primary motor, premotor, prefrontal, orbitofrontal, and inferior parietal cortices • Right pedunculopontine tract damage is associated with a greater disease severity. • White matter damage of the genu and body of the corpus callosum and right parietal
6.	Jha et al.[18]	2015	Case-control study	Seventeen PD-FOG and 21 PD-FoG patients	• Vertex-based morphometry and Statistical Parametric Mapping 8 for grey matter analysis	• Significant grey matter atrophy in PD-nFoG group in left temporal, right frontal areas and significant involvement of right cerebellum.
7.	Myers et al.[19]	2017	Case-control study	Sixty-three participants were divided into two groups, PD-FoG (n=25) and PD-nFoG (n=38)	• Cortical and cerebellar lobular segmentation analysis with FreeSurfer software (v5.3.0, http://surfer.nmr.mgh.harvard.edu/) and the SUIT toolbox[3,19]) a complete cognitive dataset.	• No differences in cerebellar volumes between PD-FoG and PD-nFoG groups
8.	Vastik et al.[20]	2017	Case-control study	Twenty-one patients with PD, 11 with FOG and 10 without FOG	• Surface-based morphometry implemented in FreeSurfer to quantify the grey matter atrophy.	• Significant cortical atrophy in PD-FoG’s left supplementary motor area (BA 6), middle/ anterior cingulate cortex, temporal pole (BA 38) and frontal operculum • Significant differences in the left mid-anterior cingulate cortex, • Significant cortical reduction in more posterior portions of the cingulate cortex bilaterally • The most affected structures were the anterior and midanterior cingulate, and superior frontal gyrus (SMA)
9.	Pietracup et al.[21]	2017	Case-control study	Twenty-one PD-FoG patients, 16 PD-nFoG patients	Grey matter measurement using SBM using FreeSurfer pipeline White matter measurement using TRACULA toolbox	• No significant differences in Cortical Thickness between PD-FoG and PD-nFoG • Significantly smaller surface area in the right parietal cortex, namely in the postcentral and supramarginal gyri and the superior parietal lobule in PD-FOG patients • No differences in subcortical volumes were found between PD-FOG and PD-nFOG patients.
10.	Bharti et al.[22]	2019	Case-control study	Fifteen patients with PD-FOG versus 16 patients with PD-nFOG	• FMRIB’s diffusion toolbox (http://fsl.fmrib.ox.ac.uk) for automatic subcortical segmentation program • TBSS tool (https://fsl.fmrib.ox.ac.uk/fsl/fslwiki) for voxel-wise statistical analysis of fractional anisotropy mapping • SUIT version 3.2 implemented in SPM12 for cerebellar volumetry	• Abnormality on cerebellar peduncle: the PD-FoG exhibited lower fractional values in the superior cerebellar peduncle and medial cerebellar peduncle than PD-nFOG • Higher mean diffusivity values in the superior cerebellar peduncle of PD-FoG compared to PD-nFoG • No global or lobular cerebellar volume differences between PD-FoG and PD-nFoG
11.	D’Cruz et al.[23]	2021	Prospective cohort study	Fifty-seven individuals with PD-FoG compared with PD-nFoG and PD-nFoG to FoG convert	• Vertex-based analysis of grey matter morphology	• Local inflations in bilateral thalamus

sMRI: Structural magnetic resonance imaging, WMHs: White matter hyperintensities, FSL: FMRIB software library, BA: Brodmann area, TBSS: Tract-based spatial statistical, SUIT: Spatially unbiased infratentorial toolbox, DT MRI: Diffusion tensor magnetic resonance imaging, SBM: Surface-based morphometry, TRACULA: Tracts constrained by underlying anatomy, PD-FoG: Parkinson’s disease freezing of gait, PD-nFoG: Parkinson’s disease new freezing of gait, DARTEL: Diffeomorphic anatomic registration exponentiated lie algebra, CSF: Cerebrospinal fluid

DISCUSSION

FoG is a disabling phenomenon that frequently affects people with PD. The PD-FoG is thought to involves extensive part of the brain, including primary sensory cortex, primary motor cortex, basal ganglia, thalamus, midbrain, and cerebellum as well as white matter that connects these areas.^[4,7,10] While therapy of PD is well-defined, it seemed that in PD-FoG these therapies are not as effective as in PD alone. Therefore, understanding the structural involvement of each brain structure in PD-FoG is critical to develop better treatment toward patient.

Patient gait and mobility is based on heavily coordinated, both voluntary and involuntary steps happening in the brain.^[9] First, activated primary motor cortex provides input through pyramidal system for a side of leg to do hip flexion and contralateral hip extension, which contributes to first attempt of movement. This is followed by proprioceptive input that passes through the thalamus, stimulating prefrontal cortex to produce critical input for extensive and complex involuntary movements which includes swing of the knee, precisive heel-strike, and, finally, precisive alignment of the foot on floor topology. This is also followed by similar contralateral leg movement which produces walking movement. These smooth involuntary movements are thought to be controlled by either direct or indirect input toward basal ganglia, where extrapyramidal tract plays major role. The involvement of proprioception and balance suggests active role of cerebellum and pedunculopontine tracts. Synchronization between two legs suggests active coordination between contralateral hemispheric cortexes, which suggest the role of corpus callosum. Hence, in the case of PD-FoG, it is expected that components of this system are affected under certain degree of damage.

Volumetric sMRI study on grey matter is and extensive research subject for PD-FoG, as well as the PD itself. At present, the target of volumetric sMRI study in PD-FoG is primary motor and sensory cortex, globus pallidus, striatum, thalamus, and subthalamic nuclei.^[4,6,13] Volumetric sMRI studies suggest that brain atrophy is the main culprit of FoG development in PD. However, it is still unclear whether brain atrophy is a part of PD progression, or the part of neurodegeneration as a whole.^[5] Damage in the grey matter of basal ganglia was initially thought to be the main cause of FoG. However, it should be noted that isolated grey matter damage of basal ganglia components as well as subthalamic nuclei may produce hyperkinetic symptoms instead, such as ballismus, chorea, and athetosis. This recalls the function of extrapyramidal system itself, where it relays and smoothen main motor input initiated through primary motor cortex. Hence, from the sMRI of PD-FoG, it is expected to reveal normal to minimal damage on grey matter of extrapyramidal system and subthalamic nuclei, but may reveal extensive atrophies on primary motor cortex grey matter. Recent studies findings on sMRI alone also showed that compared to PD-nFoG, there is no difference on cerebellar grey matter volume in PD-FoG, suggesting preservation of cerebellar control but the existence of cerebellar white matter-related insult based on structure and connectivity of cerebral cortex. This also suggests that in PD-FoG, pathology might lie in white matter connectivity while grey matter structure itself is preserved.

Study on white matter seemed to help reveals the FoG pathology more compared to the grey matter volumetry. White matter is the tract-based region of the brain. It connects between grey matter areas and serves as hotspots for input transmission. Damage of white matter is quite disabling in a long term, since reduction from input feedback is known to lead toward grey matter atrophy. Tract-based sMRI analysis suggest that in PD-nFoG, progressive damage of tract connecting frontal and basal ganglia plays role in the progressivity and onset of FoG.

Concern is raised on sMRI research result when it comes to the methods. Unlike therapeutic studies, diagnostic studies on MRI are subject to study design, limited participants, rarity of disease, disease progression, machine specification, and diversity of statistical methods which often make a review and meta-analysis difficult. Even though if we overcame these obstacles, the current dogma of reporting for radiological result is to “spot the obvious, read as a whole” often ends up in highly varied outcomes on a single MRI study. This may give advantages in seeing PD as a whole disease, but may slow the focus on specific findings and objectives.

CONCLUSION

The finding of this review allows us to conclude that sMRI is a useful tool to assess PD-FoG. New findings on sMRI of PDFoG provide information that FoG in PD is white matter-heavy pathology rather than the effect on previously thought grey matter-dominant pathology. Understanding on how the white matter damage is developed in PD-FoG and how it is prevented is the further objective of research on PD, as well as potential target for future therapies.
